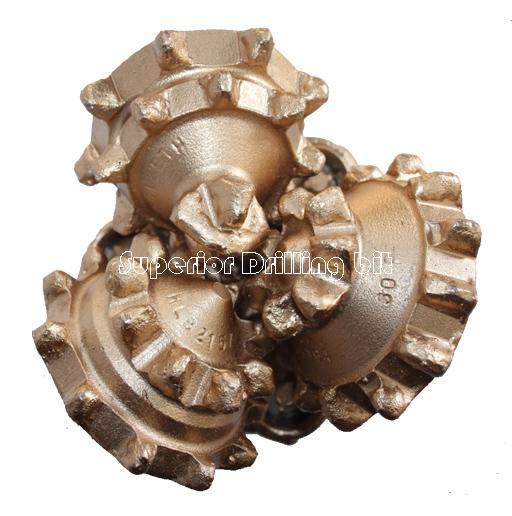

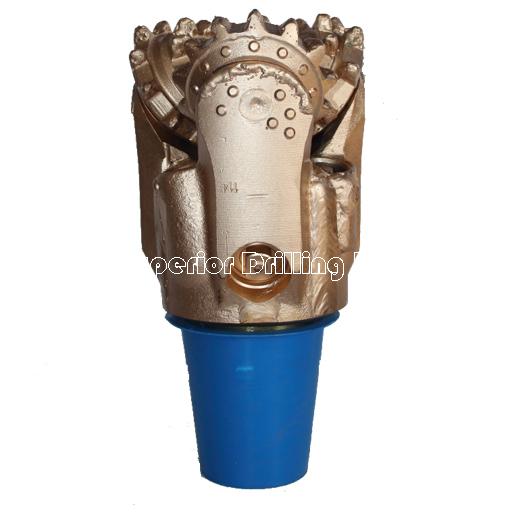

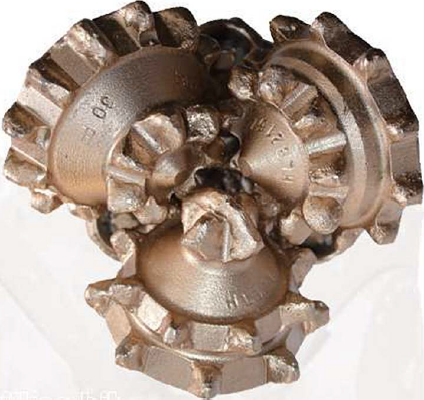

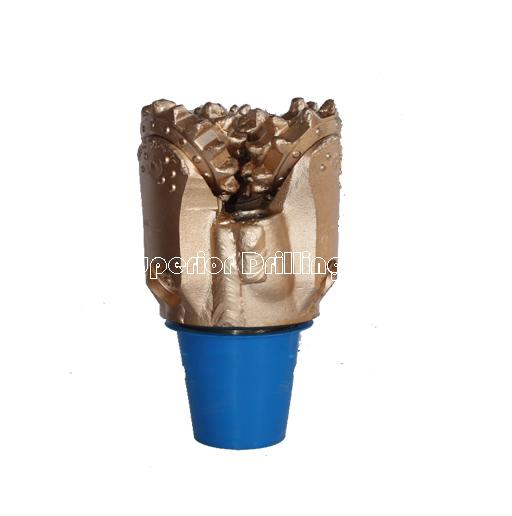

CUTTING STRUCTURE
Hardfaced tooth surface and gage, high cutter exposure and the gage fitted with compacts. the
wear-resistance of the teeth is enhanced with premium tungsten carbide hard-facing on the tooth surfaces for the steel tooth bit.
GAUGE STRUCTURE
Multiple gauge protection with gauge trimmers on the heel of cone , tungsten carbides inserts ond hard-facing on the shirttail increases gauge holding capability and bearing life .
PRODUCT SPECIFICATION
IADC : 127
Bit Size: 5 7/8 inch (149.2mm)
Serles: FA
Tooth type : Steel tooth
Connection : 3 1 /2 API Reg pin
Nozzle: three sides nozzles
Bit Weight: 13.2 kg
