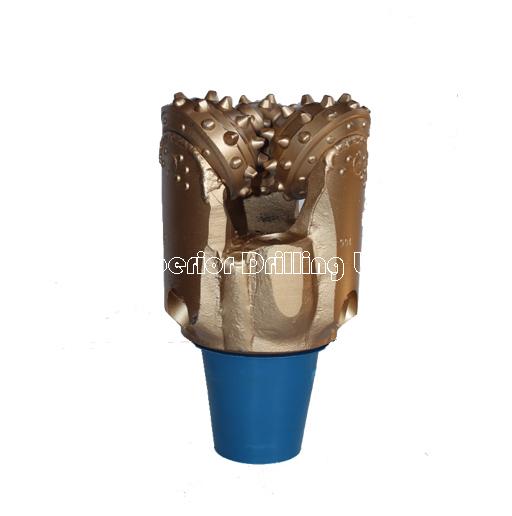

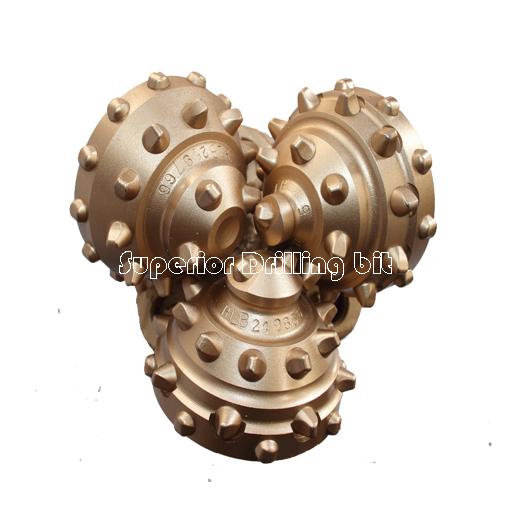

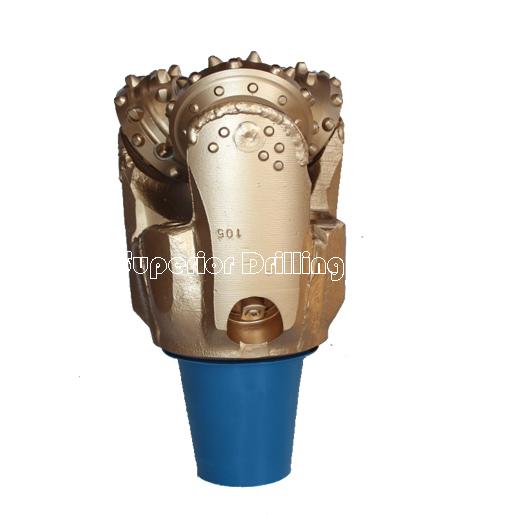

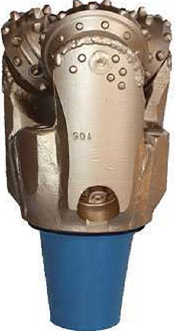

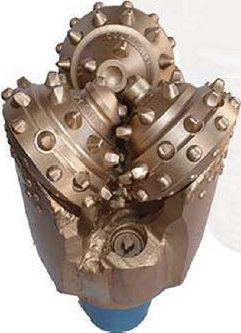

Large dia. offset crested scoop compacts in inner row.wedge compacts in outer row. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.
Multiple gauge protection with gauge trimmers onthe heel of cone, tungsten carbides inserts and hard-facing on the shirttailincreases gouge holding capability and bearing life.
IADC: 517
Bit Size: 6 1 / 4 inch (158.8mm)
Series: FA
Tooth type: TCI
Connection: 3 1 /2 API Reg pin
Nozzle: three sides(jets) nozzles
Bit Weight: 14.4kg
Adapted to be used in Soft with lowcompressive strength and high drillability, such as shale. cloy, sandstone andsoft limestone, etc.
